LCAX3/0-10-X
CONN TERM RECT TONG 3/0 AWG #10Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

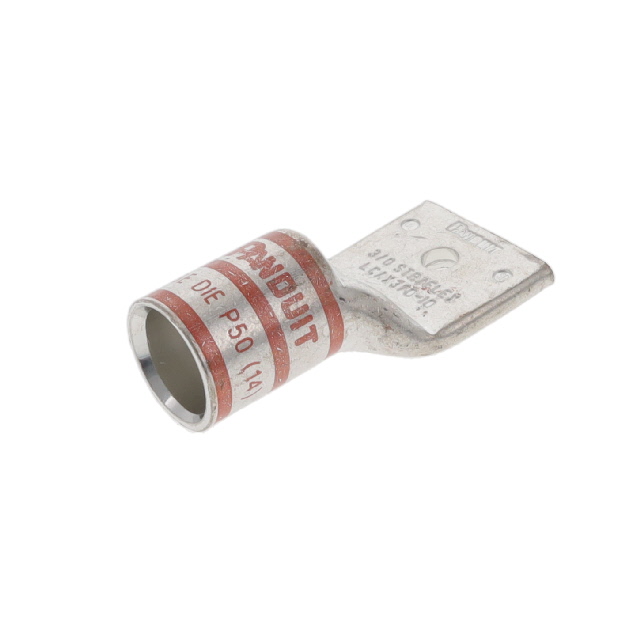

Panduit Corp LCAX3-0-10-X, a Pan-Lug™ series terminal connector, offers robust termination solutions. This rectangular tongue terminal is designed for 3/0 AWG wire, featuring a single stud hole with a #10 stud/tab size. The non-insulated, crimp barrel termination ensures a secure connection. With an overall length of 1.840 inches and a width of 1.060 inches, it provides ample contact surface. The tab thickness measures 0.140 inches. This component is suitable for applications in the power distribution and industrial automation sectors. Packaged in bulk, this Panduit Corp terminal connector is engineered for reliable performance in demanding environments.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Orange |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 3/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 1.840"" (46.74mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.060"" (26.92mm) |
| Tab Thickness | 0.140"" (3.56mm) |
| Terminal Style | Single Stud Hole |
Request a Quote
