LCAX2-12H-E
CONN TERM RECT TONG 2 AWG #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

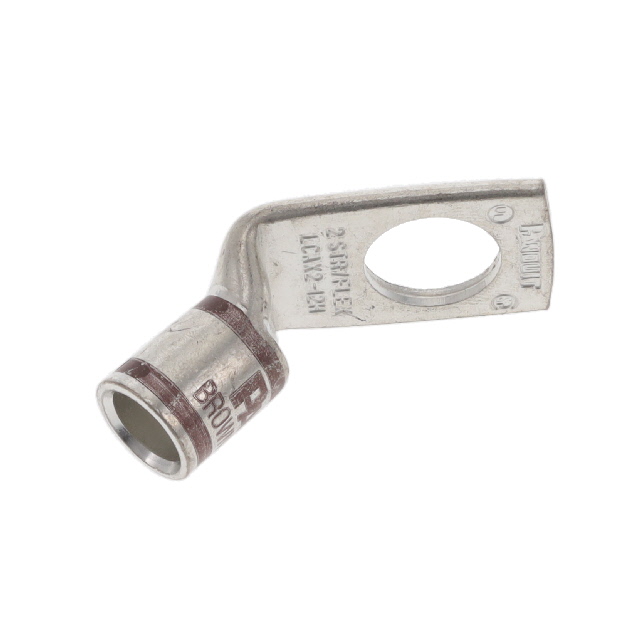

Panduit Corp Pan-Lug™ LCAX2-12H-E is a non-insulated, rectangular tongue terminal connector designed for 2 AWG wire. This component features a single stud hole with a 1/2" stud size and a tab thickness of 0.090" (2.29mm). The terminal offers a width of 0.750" (19.05mm) and is intended for crimp barrel termination. Mounting is supported via a free-hanging (in-line) configuration with a 45° angle option. This Panduit Corp Pan-Lug™ terminal is commonly utilized in power distribution and electrical infrastructure applications where reliable and robust connections are critical. The bulk packaging is suitable for high-volume integration.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 2 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.750"" (19.05mm) |
| Tab Thickness | 0.090"" (2.29mm) |
| Terminal Style | Single Stud Hole |
