LCAX2/0-58H-X
CONN TERM RECT TONG 2/0 AWG #5/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

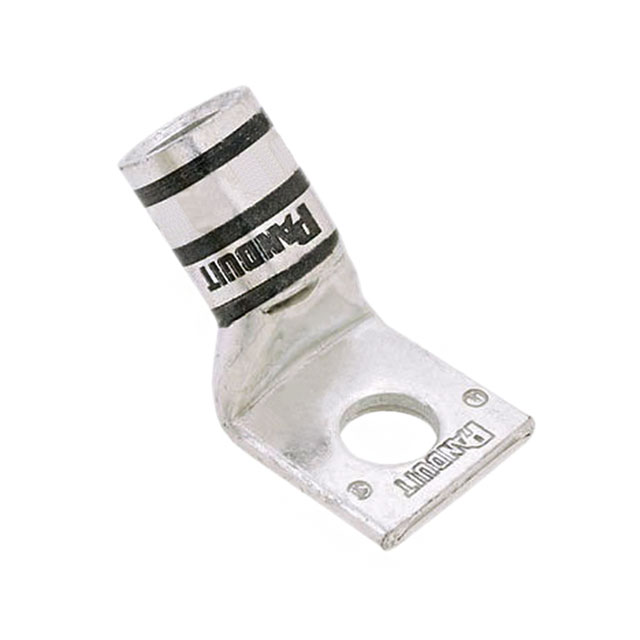

Panduit Corp Pan-Lug™ terminal connector. This non-insulated, rectangular tongue terminal (LCAX2-0-58H-X) features a single stud hole for a 5/8" stud size. Designed for 2/0 AWG wire, it offers a barrel termination type suitable for crimping. The terminal has an outer width of 0.960" (24.38mm) and a tab thickness of 0.130" (3.30mm). Mounting options include free hanging (in-line) or at a 45° angle. This component is commonly utilized in industrial power distribution and electrical infrastructure applications. Packaged in bulk.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Black |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 2/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.960"" (24.38mm) |
| Tab Thickness | 0.130"" (3.30mm) |
| Terminal Style | Single Stud Hole |
