LCAX2/0-14F-X
CONN TERM RECT TONG 2/0 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

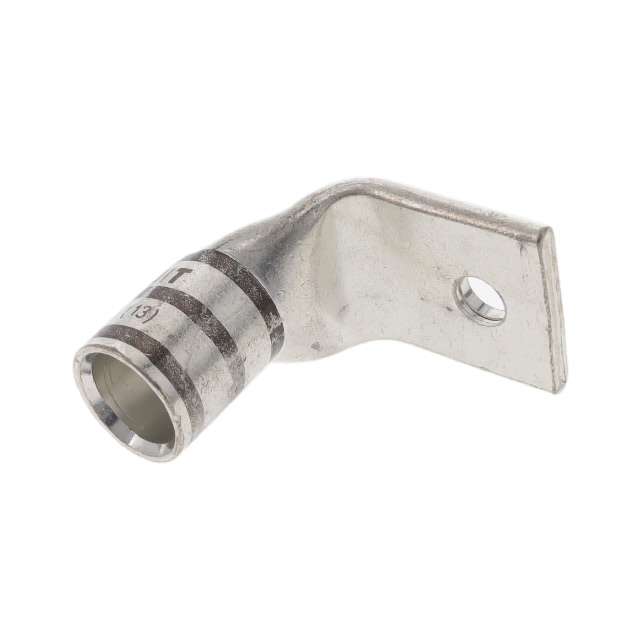

Panduit Corp Pan-Lug™ LCAX2-0-14F-X is a non-insulated, single stud hole rectangular tongue terminal connector. This component is designed for a 2/0 AWG wire gauge and features a 1/4 stud size with a tab thickness of 0.130 inches (3.30mm). The terminal type is rectangular tongue, and the termination method is crimp, barrel. The overall width of the outer edges is 0.960 inches (24.38mm). Mounting options include free hanging (in-line) and right angle configurations. This terminal connector is commonly utilized in industrial power distribution and electrical infrastructure applications. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Black |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 2/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.960"" (24.38mm) |
| Tab Thickness | 0.130"" (3.30mm) |
| Terminal Style | Single Stud Hole |
