LCAX2/0-10-X
CONN TERM RECT TONG 2/0 AWG #10Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

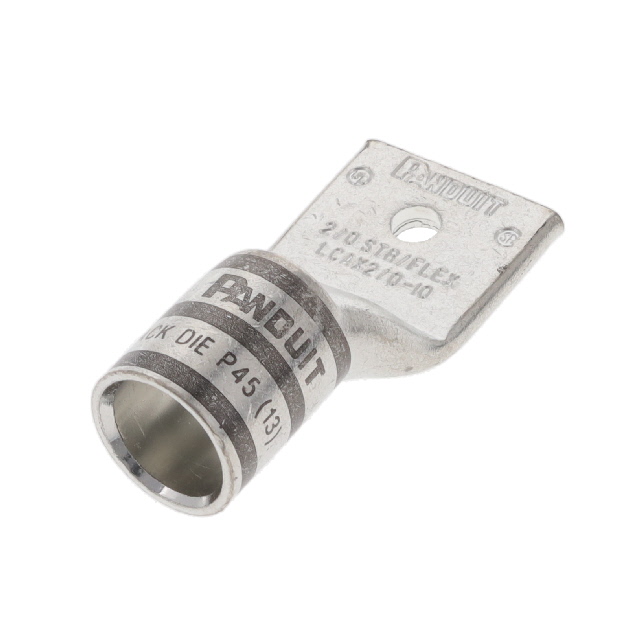

Panduit Corp Pan-Lug™ LCAX2-0-10-X is a non-insulated, rectangular tongue terminal connector designed for reliable electrical connections. This component features a single stud hole for a #10 stud size and accommodates wire gauges up to 2/0 AWG. The terminal type is a rectangular tongue with a barrel termination suitable for crimping. With an overall length of 1.970 inches (50.04mm) and a width of 0.960 inches (24.38mm), it offers a tab thickness of 0.130 inches (3.30mm). The LCAX2-0-10-X is engineered for free-hanging (in-line) mounting. This component is commonly utilized in industrial power distribution, electrical equipment manufacturing, and renewable energy systems. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Black |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 2/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 1.970"" (50.04mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.960"" (24.38mm) |
| Tab Thickness | 0.130"" (3.30mm) |
| Terminal Style | Single Stud Hole |
