LCAX1-10F-X
CONN TERM RECT TONG 1 AWG #10Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

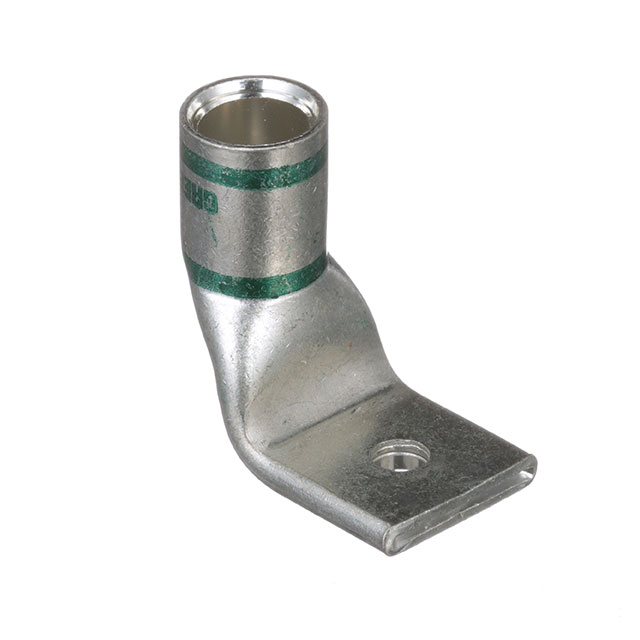

Panduit Corp Pan-Lug™ LCAX1-10F-X is a non-insulated, single stud hole, rectangular tongue terminal designed for 1 AWG wire. This component features a 0.120" (3.05mm) tab thickness and a 0.760" (19.30mm) outer edge width. The termination method is crimp, with a barrel connection. Mounting is supported via free hanging (in-line) or right angle configurations. This terminal is suitable for applications requiring a secure connection for #10 stud sizes. Industries that commonly utilize this type of connector include electrical power distribution and industrial automation. The LCAX1-10F-X is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Green |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 1 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 10 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.760"" (19.30mm) |
| Tab Thickness | 0.120"" (3.05mm) |
| Terminal Style | Single Stud Hole |
