LCAX1/0-12-C
CONN TERM RECT TONG 1/0 AWG #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

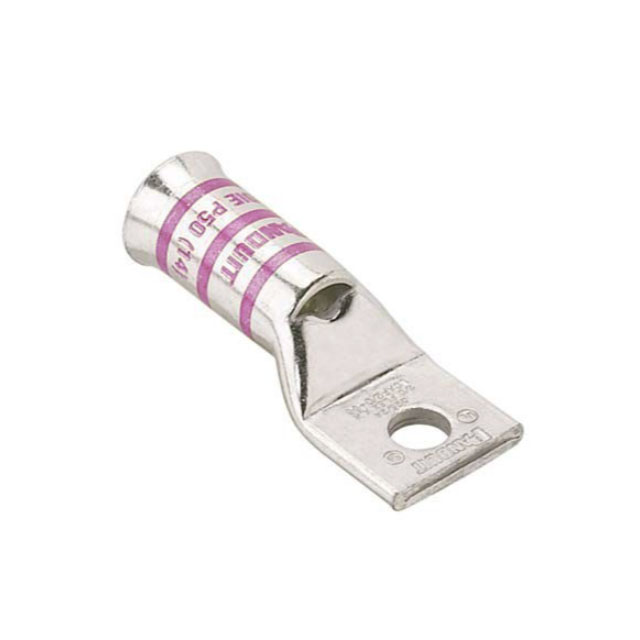

Panduit Corp Pan-Lug™ LCAX1-0-12-C is a non-insulated, rectangular tongue terminal connector. Designed for 1/0 AWG wire, it features a single 1/2 stud hole for secure mounting. The terminal has a crimp barrel termination, ensuring a robust connection. With an overall length of 2.140 inches and a width of 0.850 inches, it offers substantial contact area. The tab thickness measures 0.130 inches. This component is suitable for applications requiring reliable electrical connections in the industrial and power distribution sectors. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Pink |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 1/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | 2.140"" (54.36mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.850"" (21.59mm) |
| Tab Thickness | 0.130"" (3.30mm) |
| Terminal Style | Single Stud Hole |
