LCAS8-14F-L
CONN TERM RECT TONG 8 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

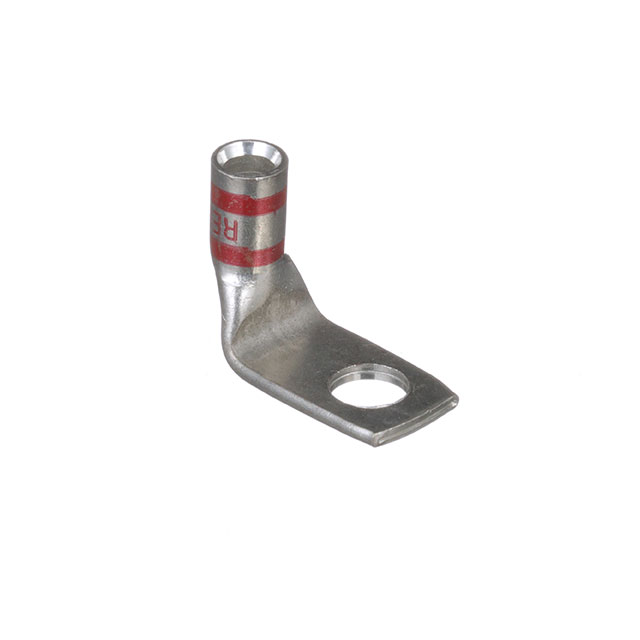

Panduit Corp Pan-Lug™ LCAS8-14F-L is a non-insulated, rectangular tongue terminal with a single stud hole designed for terminating 8 AWG conductors. This component features a 1/4 stud size and a Tab Thickness of 0.070 inches (1.78mm). The terminal type is a rectangular tongue, and termination is achieved via crimping onto the barrel. Its overall width is 0.480 inches (12.19mm). Mounting options include free hanging (in-line) and right angle configurations. This Panduit Corp terminal is suitable for applications requiring robust electrical connections, commonly found in industrial automation, power distribution, and heavy equipment manufacturing. The LCAS8-14F-L is supplied in bulk packaging and is colored red for easy identification.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Red |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 8 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.480"" (12.19mm) |
| Tab Thickness | 0.070"" (1.78mm) |
| Terminal Style | Single Stud Hole |
