LCAS6-38-L
CONN TERM RECT TONG 6 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

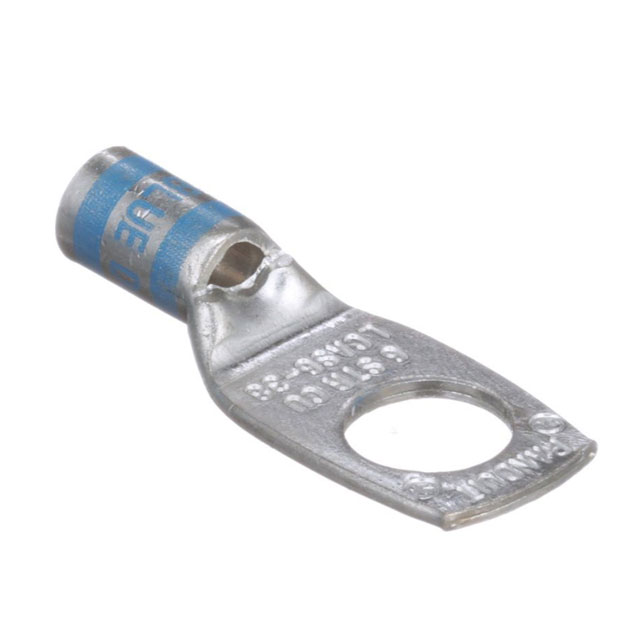

Panduit Corp Pan-Lug™ LCAS6-38-L is a non-insulated, rectangular tongue terminal connector designed for 6 AWG wire. This component features a single stud hole with a 3/8" stud size and a tab thickness of 0.060". The overall length is 1.500" (38.10mm) with an outer edge width of 0.620" (15.75mm). Termination is achieved via crimp onto the barrel. The LCAS6-38-L is suitable for in-line mounting and is commonly utilized in power distribution and electrical infrastructure applications. This part is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 6 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | 1.500"" (38.10mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.620"" (15.75mm) |
| Tab Thickness | 0.060"" (1.52mm) |
| Terminal Style | Single Stud Hole |
