LCAS6-10-L
CONN TERM RECT TONG 6 AWG #10Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

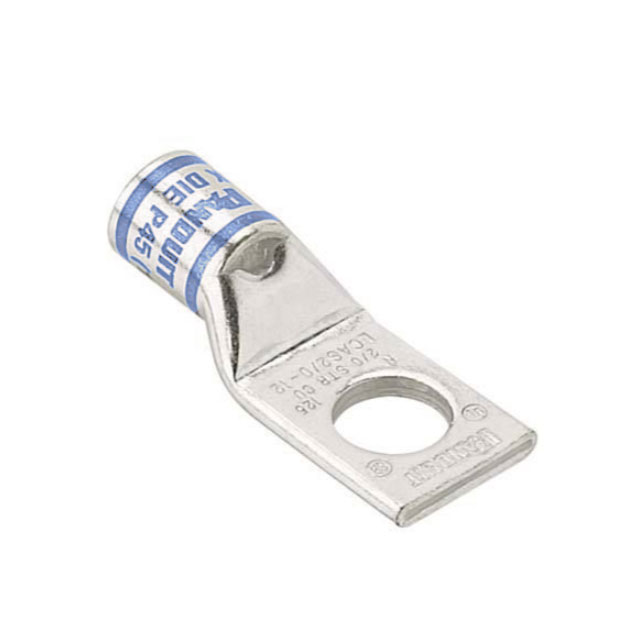

Panduit Corp Pan-Lug™ LCAS6-10-L is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component accommodates 6 AWG wire gauge with a single stud hole for a #10 stud size. The crimp termination with a barrel ensures secure wire attachment. Featuring a 0.090" tab thickness and an overall length of 1.190" (30.23mm), the connector offers a width of 0.450" (11.43mm) at its outer edges. Supplied in bulk packaging, this Panduit Corp Pan-Lug™ terminal is suitable for applications in power distribution and industrial control systems.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 6 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 1.190"" (30.23mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.450"" (11.43mm) |
| Tab Thickness | 0.090"" (2.29mm) |
| Terminal Style | Single Stud Hole |
