LCAS4-56H-L
CONN TERM RECT TONG 4 AWG #5/16Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

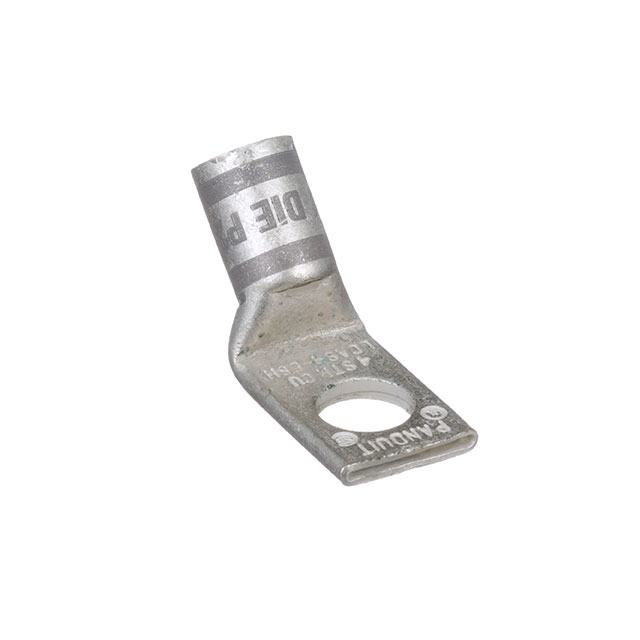

Panduit Corp's Pan-Lug™ LCAS4-56H-L is a non-insulated, rectangular tongue terminal designed for 4 AWG wire. This component features a 5/16" stud size with a tab thickness of 0.090" (2.29mm) and an overall width of 0.550" (13.97mm). Termination is achieved via crimp to the barrel. The mounting type is free hanging, available in a 45° angle configuration. This terminal is commonly utilized in power distribution, industrial automation, and renewable energy applications requiring robust wire termination. The product is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Gray |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 4 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.550"" (13.97mm) |
| Tab Thickness | 0.090"" (2.29mm) |
| Terminal Style | Single Stud Hole |
