LCAS4/0-56F-X
CONN TERM RECT TONG 4/0AWG #5/16Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

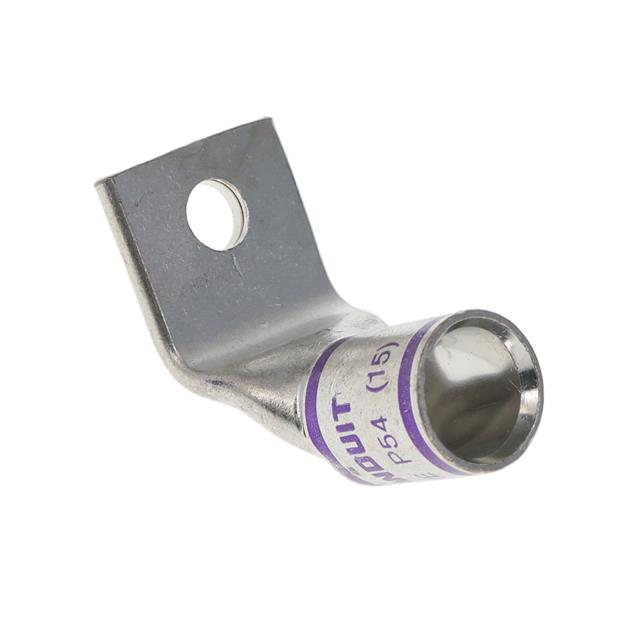

Panduit Corp Pan-Lug™ LCAS4-0-56F-X is a non-insulated, single stud hole rectangular tongue terminal connector designed for 4/0 AWG wire. This component features a 5/16 stud size with a tab thickness of 0.140" (3.56mm) and an outer width of 1.060" (26.92mm). The LCAS4-0-56F-X is suitable for crimp termination with a barrel. Its mounting type supports free hanging (in-line) and right-angle configurations. This terminal is commonly utilized in power distribution, industrial automation, and heavy equipment applications. The product is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Purple |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 4/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.060"" (26.92mm) |
| Tab Thickness | 0.140"" (3.56mm) |
| Terminal Style | Single Stud Hole |
