LCAS4/0-14-X
CONN TERM RECT TONG 4/0 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

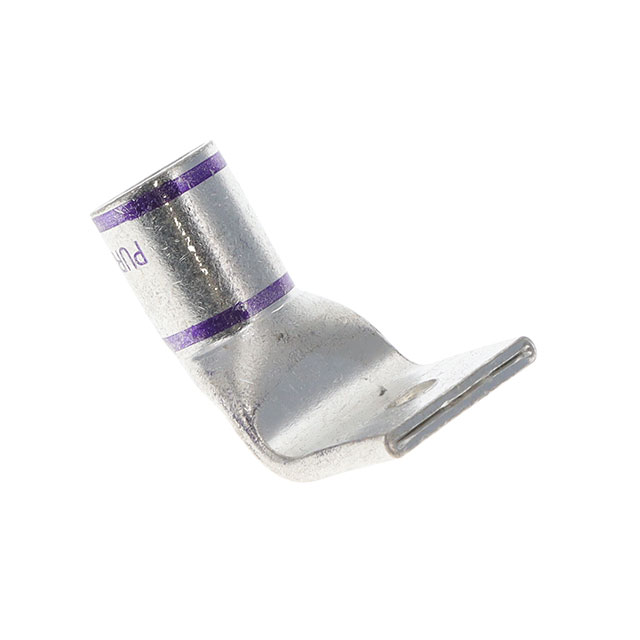

Panduit Corp Pan-Lug™ LCAS4-0-14-X is a non-insulated, rectangular tongue terminal connector designed for high-current applications. This component features a 1/4 stud size and accepts 4/0 AWG wire, secured via a crimp barrel termination. With an overall length of 2.080 inches (52.83mm) and a width of 1.060 inches (26.92mm), it offers robust electrical contact. The tab thickness is 0.140 inches (3.56mm). This terminal is suitable for in-line mounting configurations and is commonly utilized in power distribution, industrial automation, and renewable energy systems where reliable and high-capacity connections are critical. The LCAS4-0-14-X is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Purple |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 4/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 2.080"" (52.83mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.060"" (26.92mm) |
| Tab Thickness | 0.140"" (3.56mm) |
| Terminal Style | Single Stud Hole |
