LCAS3/0-56H-X
CONN TERM RECT TONG 3/0AWG #5/16Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

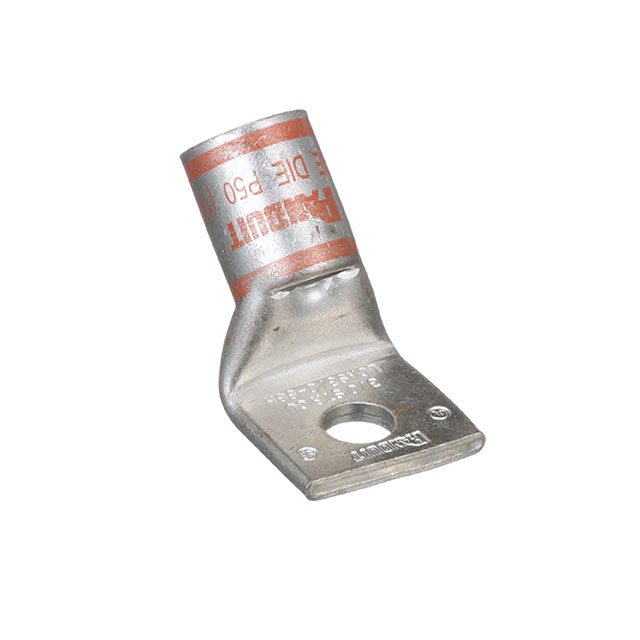

Panduit Corp Pan-Lug™ LCAS3-0-56H-X is a non-insulated, single stud hole, rectangular tongue terminal connector. Designed for terminating 3/0 AWG conductor size, it features a 5/16 stud size and a tab thickness of 0.130 inches. The overall width of the terminal is 0.960 inches. This component utilizes a crimp barrel termination. Mounting is supported via a free hanging (in-line) or 45° angle configuration. Commonly employed in power distribution and industrial automation applications, the LCAS3-0-56H-X is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Orange |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 3/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.960"" (24.38mm) |
| Tab Thickness | 0.130"" (3.30mm) |
| Terminal Style | Single Stud Hole |
