LCAS3/0-14H-X
CONN TERM RECT TONG 3/0 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

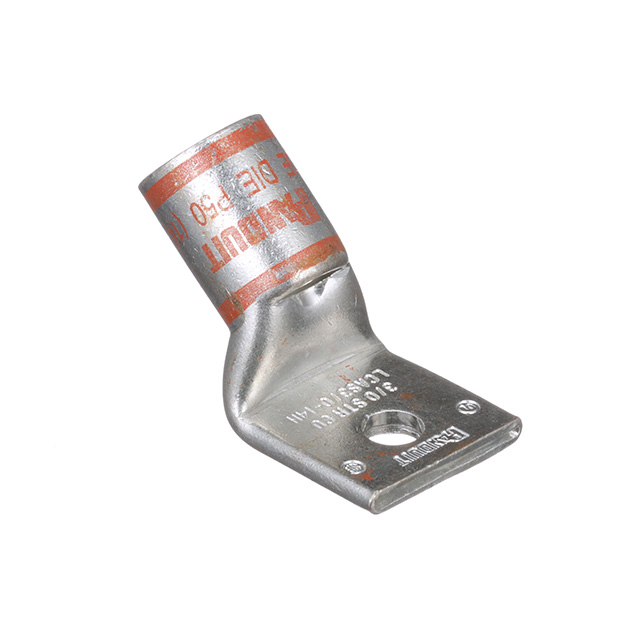

Panduit Corp Pan-Lug Series LCAS3-0-14H-X is a non-insulated, rectangular tongue terminal connector designed for high-current applications. This component accommodates 3/0 AWG wire gauge, utilizing a barrel termination for reliable crimp connections. It features a single stud hole with a 1/4 stud size and a 0.130” (3.30mm) tab thickness. The overall width measures 0.960” (24.38mm). Mounting is supported in a free hanging (in-line) configuration or at a 45° angle, facilitating flexible installation in various electrical systems. This terminal is commonly employed in power distribution, industrial automation, and renewable energy sectors where robust and secure electrical connections are paramount. Supplied in bulk packaging, the component's orange color aids in visual identification within complex wiring assemblies.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Orange |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 3/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.960"" (24.38mm) |
| Tab Thickness | 0.130"" (3.30mm) |
| Terminal Style | Single Stud Hole |
