LCAS3/0-12-X
CONN TERM RECT TONG 3/0 AWG #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

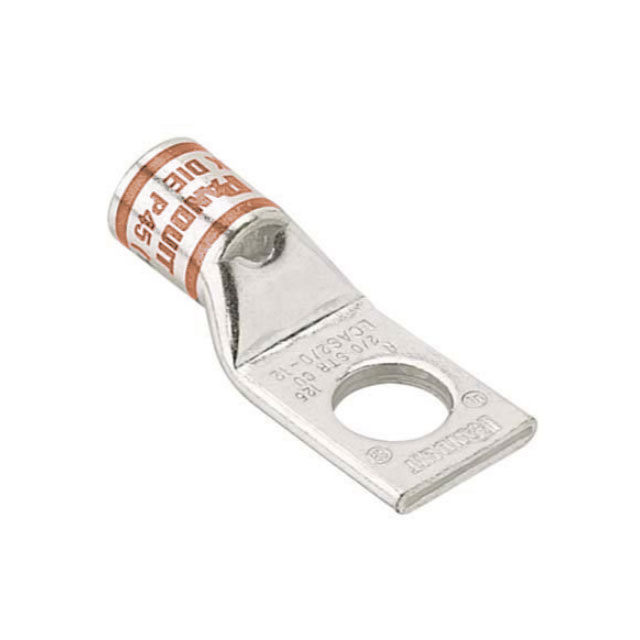

Panduit Corp Pan-Lug™ LCAS3-0-12-X is a non-insulated, rectangular tongue terminal connector designed for reliable electrical termination. This component features a single stud hole with a 1/2 stud size, accommodating 3/0 AWG wire. The overall length is 2.280 inches (57.91mm) with a tab thickness of 0.130 inches (3.30mm) and an outer edge width of 0.960 inches (24.38mm). Termination is achieved via a crimp barrel. Ideal for applications requiring robust power connections, this terminal is frequently utilized in the utility, industrial, and renewable energy sectors. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Orange |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 3/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | 2.280"" (57.91mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.960"" (24.38mm) |
| Tab Thickness | 0.130"" (3.30mm) |
| Terminal Style | Single Stud Hole |
