LCAS2/0-38-X
CONN TERM RECT TONG 2/0 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

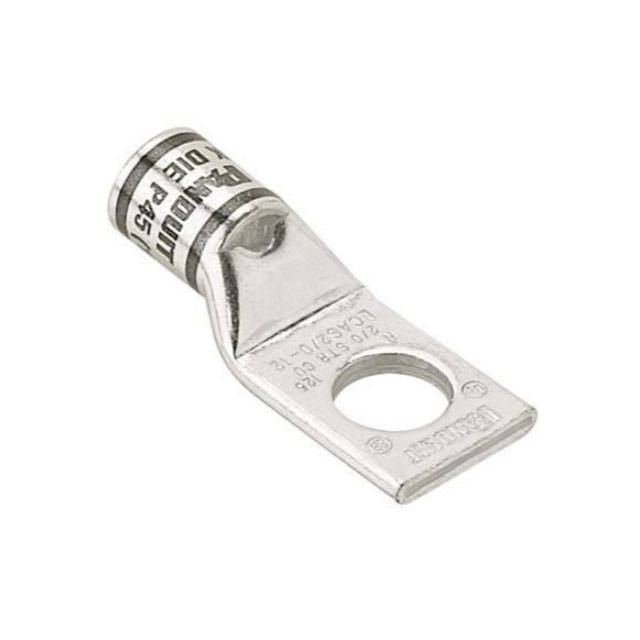

Panduit Corp Pan-Lug™ LCAS2-0-38-X is a non-insulated, rectangular tongue terminal connector designed for 2/0 AWG wire. This component features a single stud hole with a 3/8" stud size and a tab thickness of 0.130". The overall length is 1.890" (48.01mm) with an outer edge width of 0.850" (21.59mm). The termination method is crimp via a barrel. This bulk-packaged terminal is suitable for inline applications with a free-hanging mounting type. It is commonly utilized in power distribution and industrial automation systems.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Black |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 2/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | 1.890"" (48.01mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.850"" (21.59mm) |
| Tab Thickness | 0.130"" (3.30mm) |
| Terminal Style | Single Stud Hole |
Request a Quote
