LCAS2/0-14-X
CONN TERM RECT TONG 2/0 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

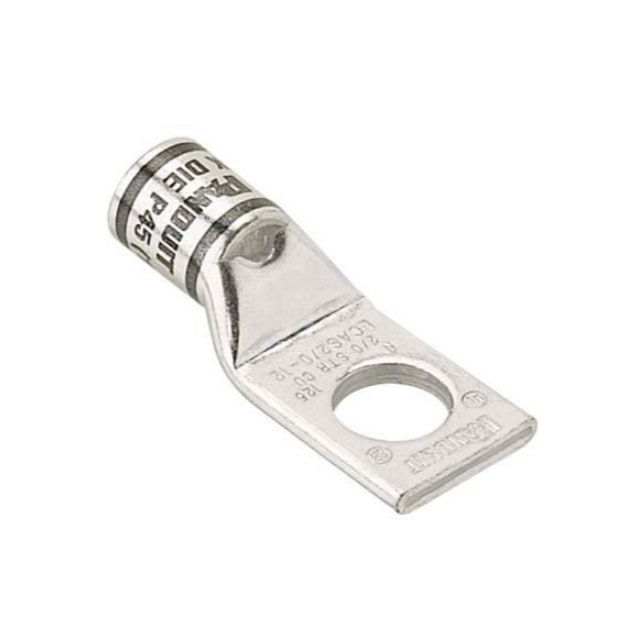

Panduit Corp Pan-Lug™ LCAS2-0-14-X is a non-insulated, single stud hole rectangular tongue terminal designed for 2/0 AWG wire. This terminal features a 1/4 stud size with a 0.130" tab thickness, providing a secure connection. The overall length is 1.820" (46.23mm) with an outer width of 0.850" (21.59mm). Termination is achieved via crimp barrel. The LCAS2-0-14-X is suitable for in-line, free hanging mounting applications. This component is commonly utilized in power distribution, industrial automation, and renewable energy systems where reliable electrical connections are critical. Supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Black |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 2/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 1.820"" (46.23mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.850"" (21.59mm) |
| Tab Thickness | 0.130"" (3.30mm) |
| Terminal Style | Single Stud Hole |
