LCAS2/0-12F-X
CONN TERM RECT TONG 2/0 AWG #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

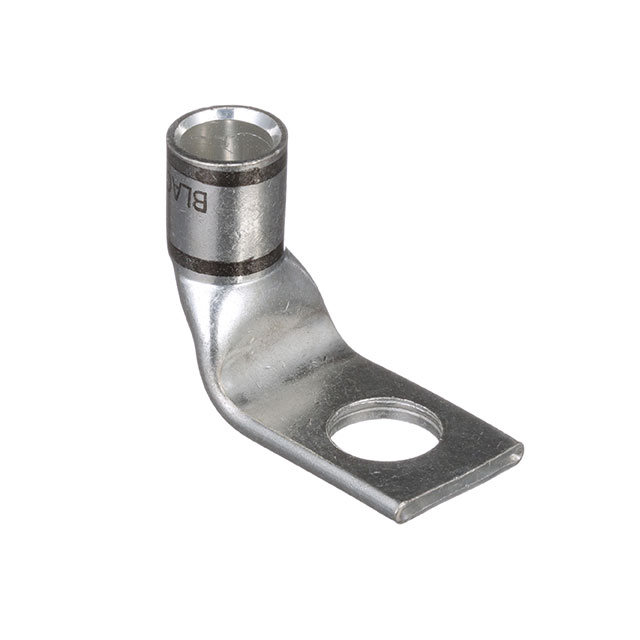

Panduit Corp Pan-Lug™ LCAS2-0-12F-X is a non-insulated, bulk-packaged electrical terminal connector designed for robust wire termination. This component features a rectangular tongue with a single 1/2 stud hole, accommodating 2/0 AWG wire gauge via a crimp barrel termination. The outer edges measure 0.850 inches (21.59mm) in width, with a tab thickness of 0.130 inches (3.30mm). Its mounting configuration allows for free hanging (in-line) or right-angle placement. This terminal connector is utilized across various industrial applications, including power distribution and electrical equipment manufacturing.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Black |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 2/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.850"" (21.59mm) |
| Tab Thickness | 0.130"" (3.30mm) |
| Terminal Style | Single Stud Hole |
