LCAS1-56H-E
CONN TERM RECT TONG 1 AWG #5/16Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

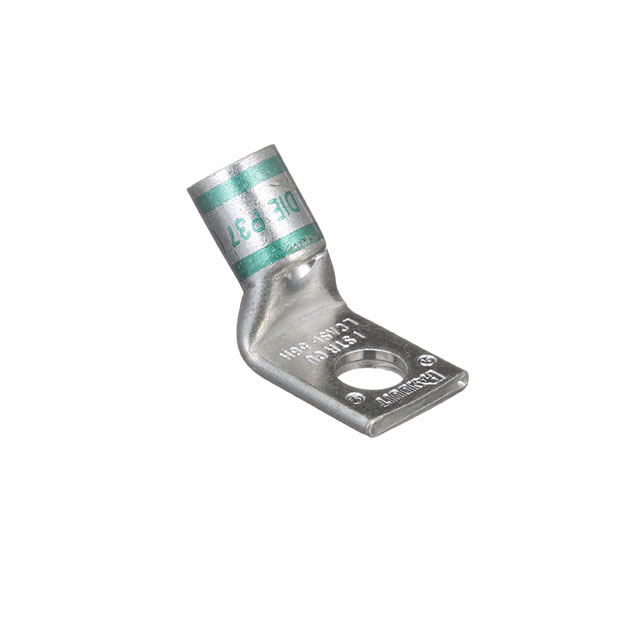

Panduit Corp Pan-Lug™ LCAS1-56H-E is a non-insulated, single stud hole rectangular tongue terminal connector designed for 1 AWG wire. This component features a 5/16 stud size with a tab thickness of 0.110 inches (2.79mm) and an outer edge width of 0.700 inches (17.78mm). The LCAS1-56H-E is terminated via a crimp barrel and offers versatile mounting options including free hanging (in-line) and a 45° angle. This terminal is commonly utilized in power distribution and electrical infrastructure applications. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Green |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 1 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.700"" (17.78mm) |
| Tab Thickness | 0.110"" (2.79mm) |
| Terminal Style | Single Stud Hole |
