LCAS1-12-E
CONN TERM RECT TONG 1 AWG #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

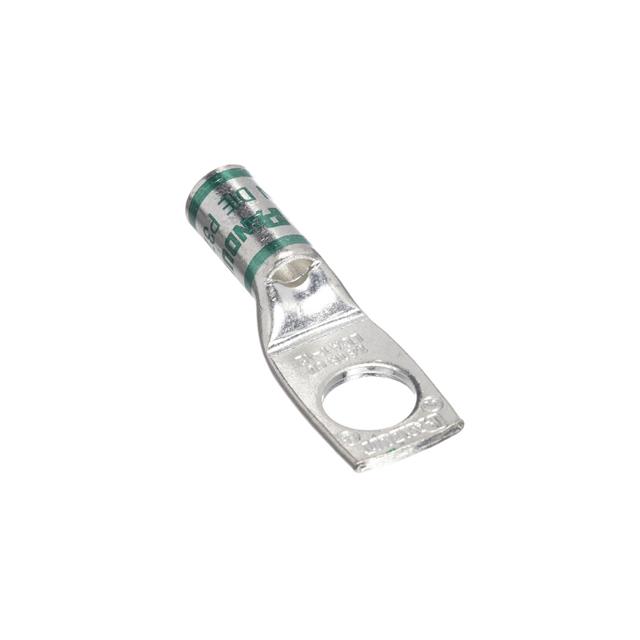

Panduit Corp Pan-Lug™ LCAS1-12-E is a non-insulated, rectangular tongue terminal connector designed for 1 AWG wire. This component features a 0.500" stud size and a single stud hole for secure mounting. The terminal style is a rectangular tongue with a barrel termination suitable for crimping. Overall length is 1.940" (49.28mm), with a width of 0.750" (19.05mm) and a tab thickness of 0.090" (2.29mm). This Panduit Corp Pan-Lug™ connector finds application in electrical distribution and industrial control systems. The LCAS1-12-E is provided in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Green |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 1 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | 1.940"" (49.28mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.750"" (19.05mm) |
| Tab Thickness | 0.090"" (2.29mm) |
| Terminal Style | Single Stud Hole |
