LCAS1/0-38F-X
CONN TERM RECT TONG 1/0 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

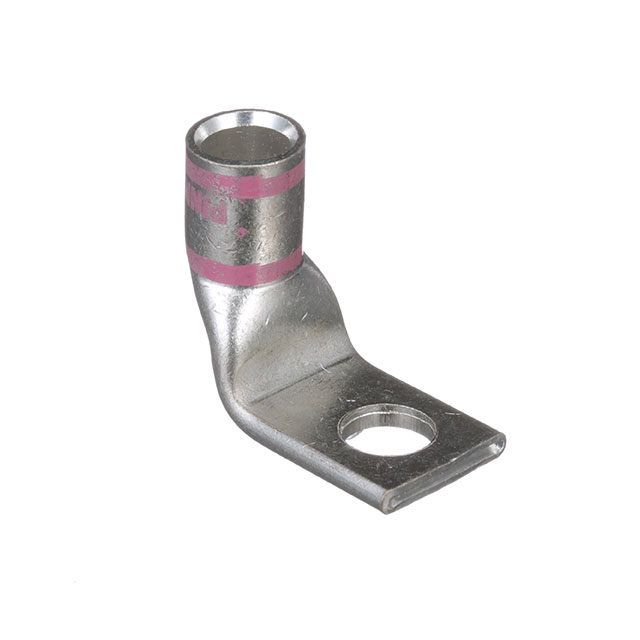

Panduit Corp Pan-Lug™ LCAS1-0-38F-X is a non-insulated, rectangular tongue terminal connector designed for 1/0 AWG wire. This component features a single stud hole with a 3/8" stud size and a tab thickness of 0.120". The terminal style is a single stud hole, and the termination is achieved via crimping onto the barrel. The outer edges have a width of 0.760". This terminal is suitable for free hanging (in-line) and right-angle mounting configurations. It is commonly specified in power distribution, industrial automation, and transportation sectors where reliable electrical connections are critical.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Pink |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 1/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.760"" (19.30mm) |
| Tab Thickness | 0.120"" (3.05mm) |
| Terminal Style | Single Stud Hole |
