LCAS1/0-12F-X
CONN TERM RECT TONG 1/0 AWG #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

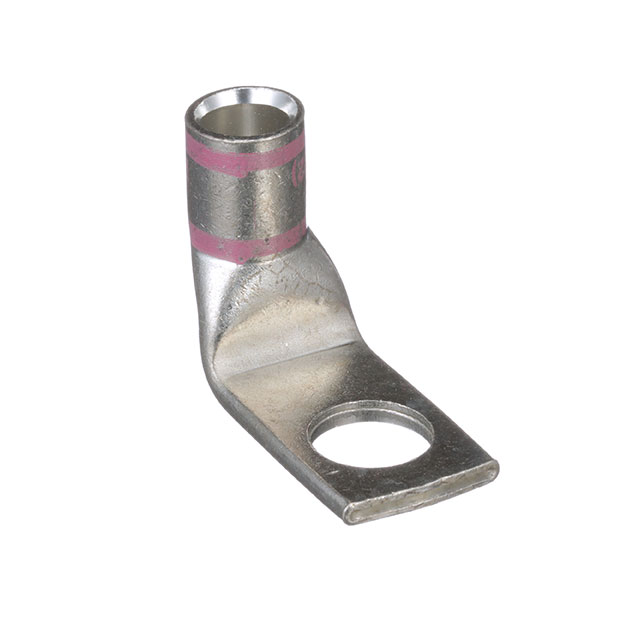

Panduit Corp Pan-Lug™ LCAS1-0-12F-X is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component accommodates 1/0 AWG wire gauge with a 1/2 inch stud size and a tab thickness of 0.120 inches. Featuring a single stud hole and a crimp barrel termination, it offers reliable connectivity. The overall width is 0.800 inches. This terminal is suitable for applications requiring secure, high-capacity connections in industries such as power distribution, industrial automation, and renewable energy systems. Supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Pink |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 1/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.800"" (20.32mm) |
| Tab Thickness | 0.120"" (3.05mm) |
| Terminal Style | Single Stud Hole |
