LCAS1/0-12-X
CONN TERM RECT TONG 1/0 AWG #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

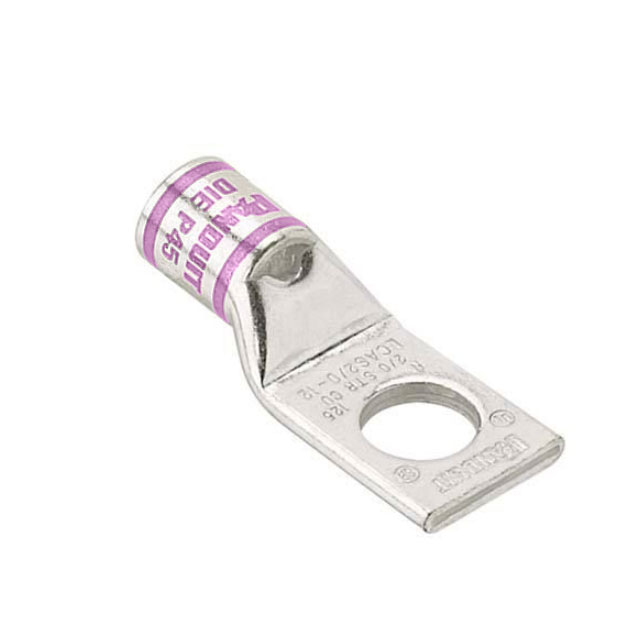

Panduit Corp Pan-Lug™ LCAS1-0-12-X is a non-insulated, single stud hole rectangular tongue terminal connector. This component is designed for crimp barrel termination of 1/0 AWG wire. It features a 1/2 inch stud size and a tab thickness of 0.090 inches. The overall length is 1.940 inches with an outer edge width of 0.750 inches. The LCAS1-0-12-X is suitable for free hanging (in-line) mounting and is supplied in bulk packaging. This terminal connector is commonly utilized in power distribution and electrical infrastructure applications.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Pink |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 1/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | 1.940"" (49.28mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.750"" (19.05mm) |
| Tab Thickness | 0.090"" (2.29mm) |
| Terminal Style | Single Stud Hole |
Request a Quote
