LCAN250-14-X
CONN TERM RECT TONG 250 MCM #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

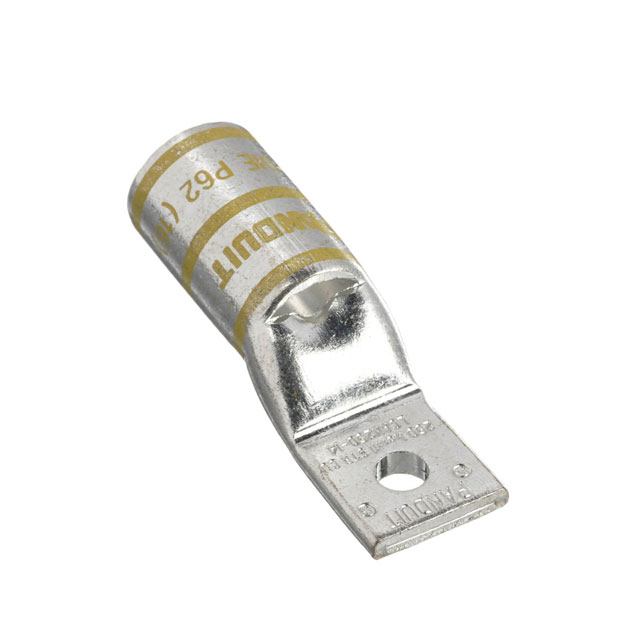

The Panduit Corp Pan-Lug™ LCAN250-14-X is a non-insulated, rectangular tongue terminal designed for 250MCM (kcmil) wire gauge. This single stud hole terminal features a 1/4 stud size and a tab thickness of 0.140 inches (3.56mm). With an overall length of 2.470 inches (62.74mm) and an outer width of 0.770 inches (19.56mm), it offers a robust crimp termination with a barrel. This component is typically utilized in power distribution and electrical infrastructure applications, including industrial automation and energy management systems. The LCAN250-14-X is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 250MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 2.470"" (62.74mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.770"" (19.56mm) |
| Tab Thickness | 0.140"" (3.56mm) |
| Terminal Style | Single Stud Hole |
