LCAF8-56H-L
CONN TERM RECT TONG 8 AWG #5/16Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

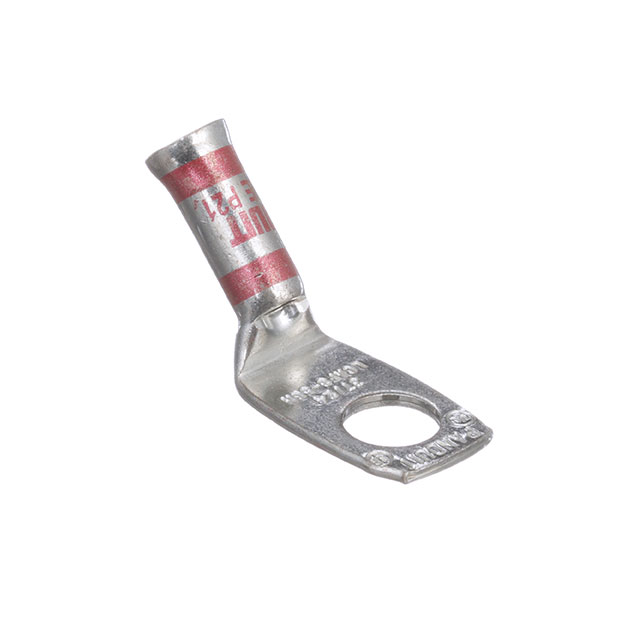

Panduit Corp Pan-Lug™ LCAF8-56H-L is a non-insulated, rectangular tongue terminal designed for reliable electrical connections. This component features a 5/16 stud size with a tab thickness of 0.050" (1.27mm), accommodating 8 AWG wire. The terminal type is single stud hole with a barrel termination requiring a crimp. Its outer edge width measures 0.560" (14.22mm). Mounting is suitable for free hanging (in-line) applications, with an option for a 45° angle orientation. This Panduit Corp terminal is commonly utilized in power distribution, industrial automation, and electrical infrastructure sectors. Offered in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Red |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 8 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.560"" (14.22mm) |
| Tab Thickness | 0.050"" (1.27mm) |
| Terminal Style | Single Stud Hole |
