LCAF8-56-L
CONN TERM RECT TONG 8 AWG #5/16Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

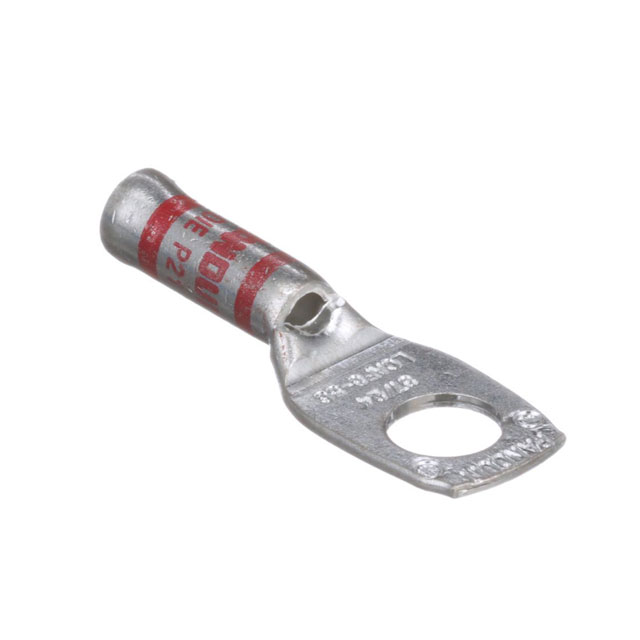

Panduit Corp LCAF8-56-L, a non-insulated Pan-Lug™ rectangular tongue terminal, is engineered for efficient wire termination. This component accommodates 8 AWG wire sizes with a 5/16 stud size for secure connection. Featuring a single stud hole and a barrel termination style, it is designed for crimp application. The overall length is 1.660 inches (42.16mm) with an outer width of 0.560 inches (14.22mm) and a tab thickness of 0.050 inches (1.27mm). This terminal is suitable for free hanging (in-line) mounting. It finds application in power distribution and electrical control systems. The LCAF8-56-L is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 8 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | 1.660"" (42.16mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.560"" (14.22mm) |
| Tab Thickness | 0.050"" (1.27mm) |
| Terminal Style | Single Stud Hole |
Request a Quote
