LCAF8-10-L
CONN TERM RECT TONG 8 AWG #10Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

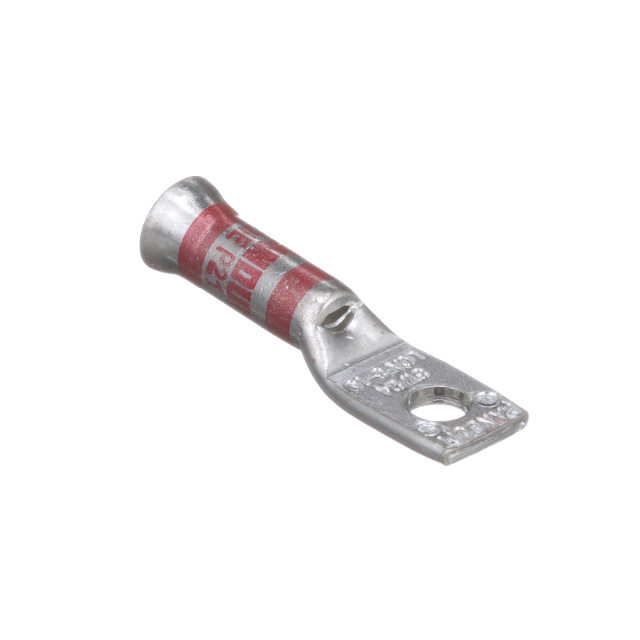

Panduit Corp Pan-Lug™ LCAF8-10-L is a non-insulated, rectangular tongue terminal designed for 8 AWG wire. This component features a single stud hole with a #10 stud size and a tab thickness of 0.080 inches. The overall length is 1.450 inches, with an outer width of 0.410 inches. Termination is achieved via crimp to the barrel. This terminal is suitable for free hanging (in-line) mounting applications and is supplied in bulk packaging. It is widely utilized in power distribution and electrical connection systems within the industrial, automotive, and telecommunications sectors.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 8 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 1.450"" (36.83mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.410"" (10.41mm) |
| Tab Thickness | 0.080"" (2.03mm) |
| Terminal Style | Single Stud Hole |
Request a Quote
