LCAF750-58-3
CONN TERM RECT TONG 750 MCM #5/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

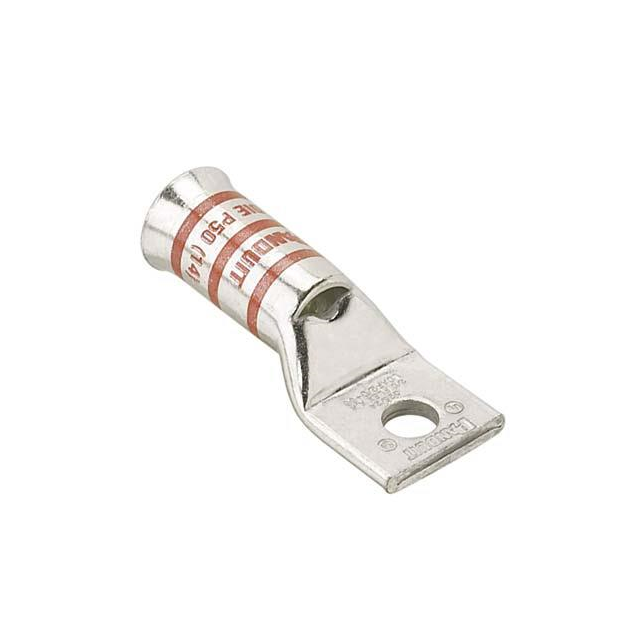

Panduit Corp LCAF750-58-3 is a non-insulated Pan-Lug™ terminal connector designed for high-current applications. This rectangular tongue terminal features a 5/8 stud size and accommodates wire gauges up to 750 MCM (kcmil). The crimp termination with a robust barrel ensures a secure and reliable connection. With an overall length of 5.400 inches and a width of 2.170 inches at its outer edges, this component offers substantial contact surface area. The tab thickness is 0.320 inches. Its free-hanging, in-line mounting type and single stud hole facilitate straightforward installation in demanding industrial environments. This terminal is commonly utilized in power distribution, heavy machinery, and renewable energy systems.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Orange |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 750MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/8 Stud |
| Length - Overall | 5.400"" (137.16mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 2.170"" (55.12mm) |
| Tab Thickness | 0.320"" (8.13mm) |
| Terminal Style | Single Stud Hole |
