LCAF600-58-6
CONN TERM RECT TONG 600 MCM #5/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

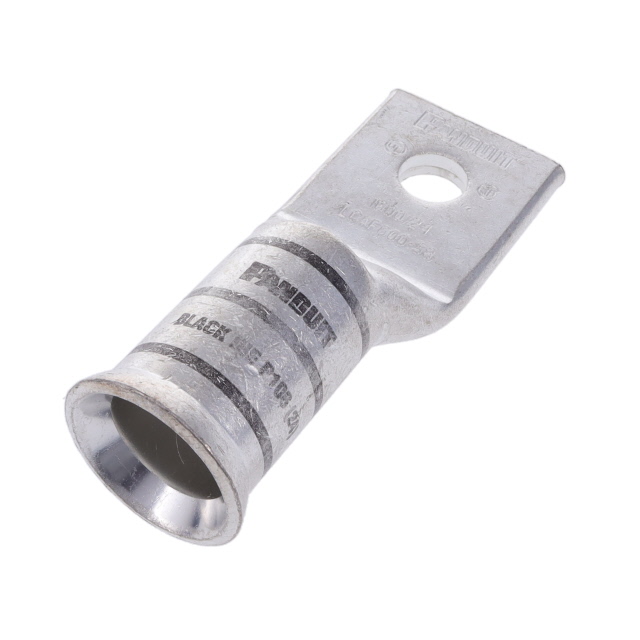

Panduit Corp Pan-Lug™ LCAF600-58-6 is a non-insulated, rectangular tongue terminal engineered for robust electrical connections. This terminal accommodates wire gauges up to 600MCM (kcmil) and features a single stud hole with a 5/8 stud size. The crimp barrel termination ensures a secure and reliable connection. With an overall length of 5.260 inches (133.60mm) and a width of 1.950 inches (49.53mm), it is designed for in-line, free-hanging mounting. The tab thickness is 0.300 inches (7.62mm). This component is commonly utilized in power distribution, industrial automation, and renewable energy systems. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Black |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 600MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/8 Stud |
| Length - Overall | 5.260"" (133.60mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.950"" (49.53mm) |
| Tab Thickness | 0.300"" (7.62mm) |
| Terminal Style | Single Stud Hole |
