LCAF6-56-L
CONN TERM RECT TONG 6 AWG #5/16Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

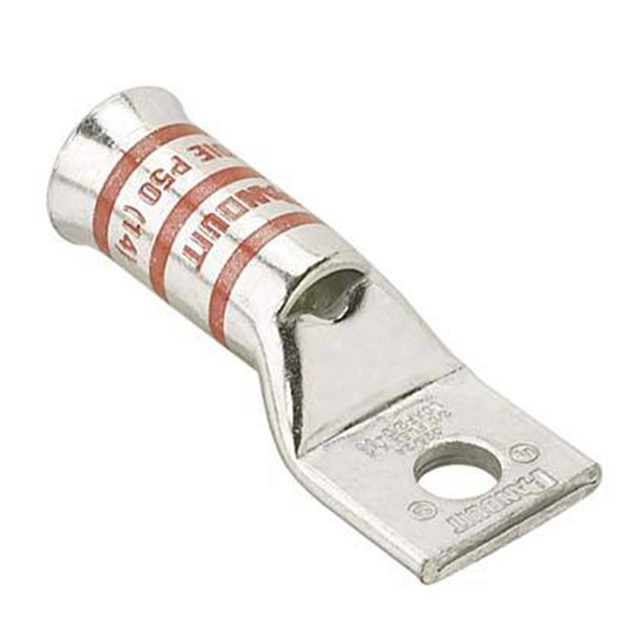

Panduit Corp Pan-Lug™ LCAF6-56-L is a non-insulated, rectangular tongue terminal connector designed for 6 AWG wire. This component features a single stud hole with a 5/16" stud size and a tab thickness of 0.070". The overall length is 1.730" (43.94mm) and the outer edges measure 0.560" (14.22mm). Termination is achieved via crimping to the barrel. This component is suitable for free hanging (in-line) mounting. Applications include industrial power distribution and electrical infrastructure. The product is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 6 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | 1.730"" (43.94mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.560"" (14.22mm) |
| Tab Thickness | 0.070"" (1.78mm) |
| Terminal Style | Single Stud Hole |
