LCAF6-38F-L
CONN TERM RECT TONG 6 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

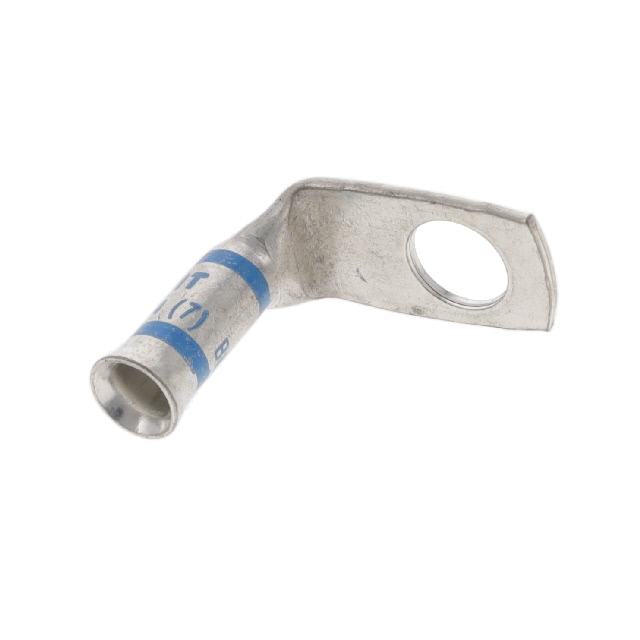

Panduit Corp Pan-Lug™ LCAF6-38F-L is a non-insulated rectangular tongue terminal connector designed for reliable electrical connections. This component features a single stud hole with a 3/8 stud size and a tab thickness of 0.060 inches. It is engineered for 6 AWG wire gauge and utilizes a crimp barrel termination method. The overall width across outer edges is 0.620 inches. Mounting options include free hanging (in-line) and right angle configurations. This terminal connector is commonly employed in industrial automation, power distribution, and transportation sectors where secure and robust wire termination is critical. The LCAF6-38F-L is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 6 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.620"" (15.75mm) |
| Tab Thickness | 0.060"" (1.52mm) |
| Terminal Style | Single Stud Hole |
