LCAF6-14F-L
CONN TERM RECT TONG 6 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

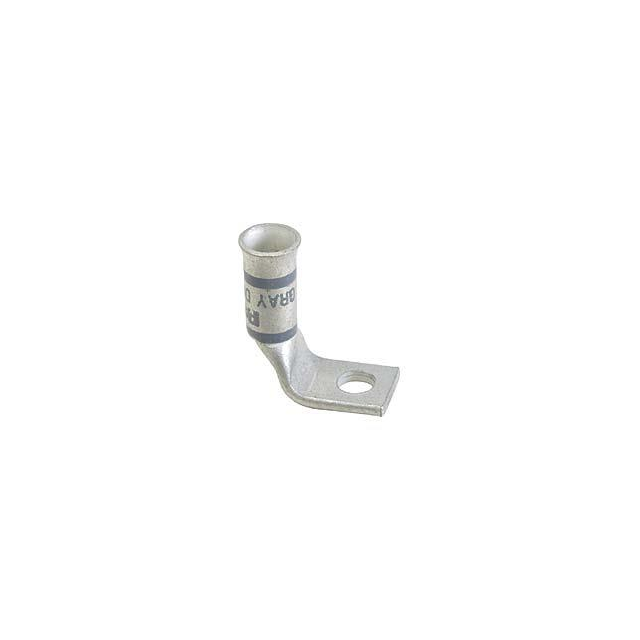

Panduit Corp Pan-Lug™ LCAF6-14F-L is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component features a 1/4" stud size with a tab thickness of 0.080" (2.03mm) and a wire gauge capacity of 6 AWG. The terminal type is a single stud hole, suitable for crimp barrel termination. With an overall width of 0.480" (12.19mm), it offers a secure connection point. The mounting type is free hanging (in-line) with a right-angle orientation. This Panduit Corp terminal is commonly utilized in industrial power distribution, electrical equipment manufacturing, and renewable energy systems where reliable and durable wire termination is critical. Supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 6 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.480"" (12.19mm) |
| Tab Thickness | 0.080"" (2.03mm) |
| Terminal Style | Single Stud Hole |
