LCAF400-12H-6
CONN TERM RECT TONG 400 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

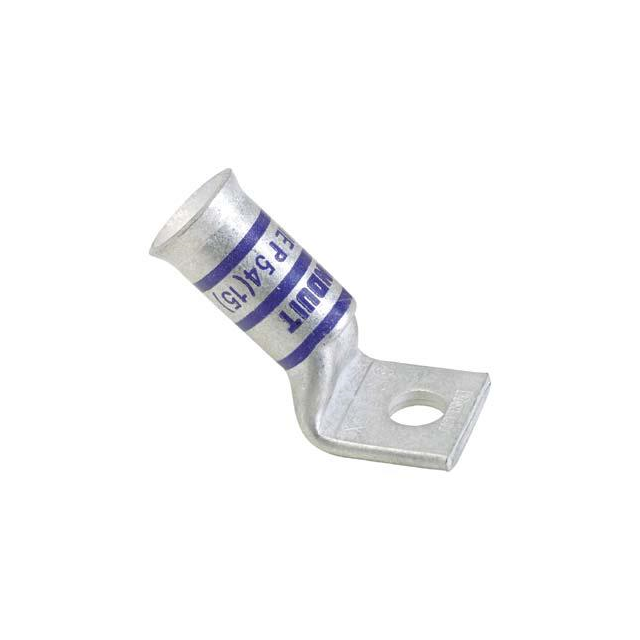

The Panduit Corp Pan-Lug™ LCAF400-12H-6 is a non-insulated rectangular tongue terminal connector designed for 400 MCM (kcmil) wire. This component features a single stud hole for a 1/2 stud size and a tab thickness of 0.260" (6.60mm). The terminal type is a rectangular tongue with a barrel termination suitable for crimping. With an overall width of 1.700" (43.18mm), it offers a robust connection for high-current applications. The mounting type supports free hanging (in-line) configurations and can also be mounted at a 45° angle. This terminal is commonly utilized in power distribution, industrial automation, and heavy electrical equipment sectors. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 400MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.700"" (43.18mm) |
| Tab Thickness | 0.260"" (6.60mm) |
| Terminal Style | Single Stud Hole |
