LCAF4-38H-L
CONN TERM RECT TONG 4 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

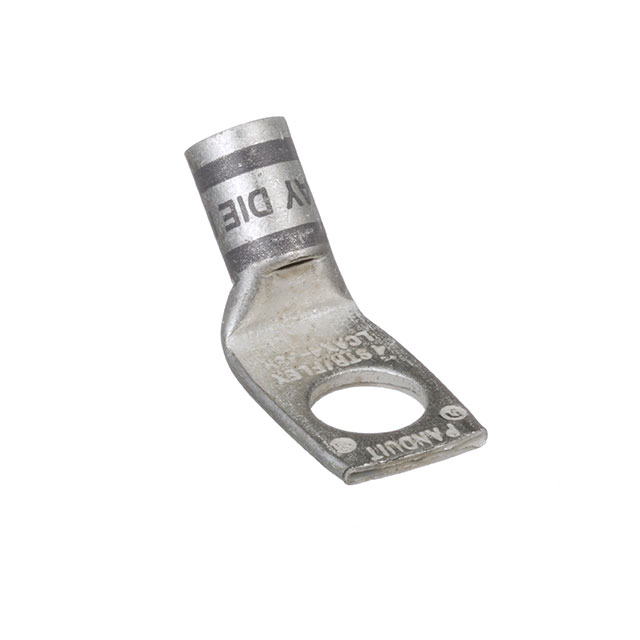

Panduit Corp Pan-Lug™ LCAF4-38H-L is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component, suitable for 4 AWG wire, features a single stud hole with a 3/8" stud size and a tab thickness of 0.070". The terminal employs a crimp termination method via a barrel. Its overall width is 0.620", and it offers versatile mounting options, including free hanging (in-line) and at a 45° angle. Commonly utilized in power distribution, industrial automation, and telecommunications infrastructure, this terminal connector ensures reliable electrical continuity in demanding applications. The product is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Gray |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 4 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.620"" (15.75mm) |
| Tab Thickness | 0.070"" (1.78mm) |
| Terminal Style | Single Stud Hole |
