LCAF4-38F-L
CONN TERM RECT TONG 4 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

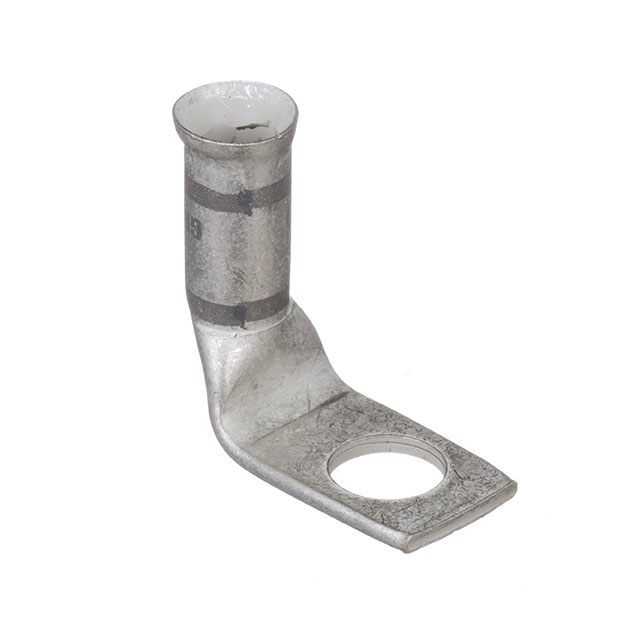

Panduit Corp Pan-Lug™ LCAF4-38F-L is a non-insulated, single stud hole terminal connector designed for robust electrical connections. This rectangular tongue terminal, suitable for 4 AWG wire, features a 3/8 stud size and a tab thickness of 0.070 inches (1.78mm). The terminal's outer width measures 0.620 inches (15.75mm). Termination is achieved via crimp barrel. The mounting type offers flexibility with options for free hanging (in-line) or right-angle configurations. Commonly utilized in power distribution and industrial automation, the LCAF4-38F-L is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Gray |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 4 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.620"" (15.75mm) |
| Tab Thickness | 0.070"" (1.78mm) |
| Terminal Style | Single Stud Hole |
