LCAF4-10-L
CONN TERM RECT TONG 4 AWG #10Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

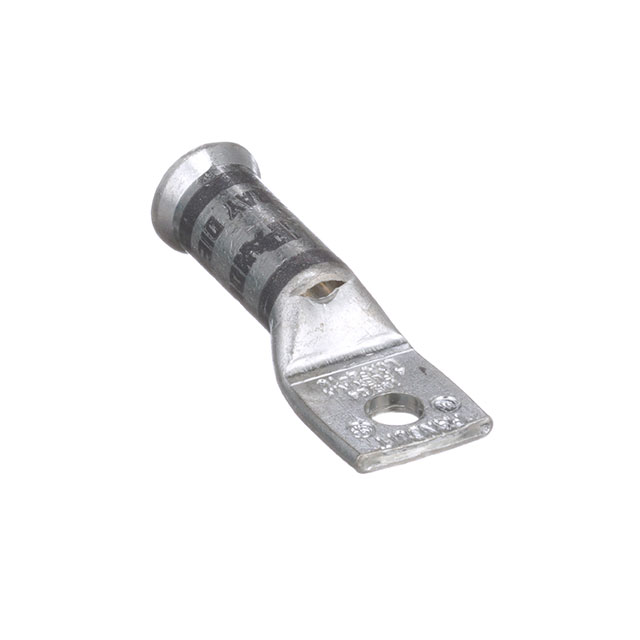

Panduit Corp's Pan-Lug™ LCAF4-10-L is a non-insulated rectangular tongue terminal connector. Designed for 4 AWG wire, it features a single stud hole for a #10 stud size. The terminal is manufactured with a crimp barrel termination and a tab thickness of 0.090 inches (2.29mm). Its overall length is 1.540 inches (39.12mm) with an outer width of 0.550 inches (13.97mm). This component is suitable for free hanging (in-line) mounting applications. The LCAF4-10-L is supplied in bulk packaging and is commonly found in power distribution and industrial control systems.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Gray |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 4 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 1.540"" (39.12mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.550"" (13.97mm) |
| Tab Thickness | 0.090"" (2.29mm) |
| Terminal Style | Single Stud Hole |
