LCAF350-58-6
CONN TERM RECT TONG 350 MCM #5/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

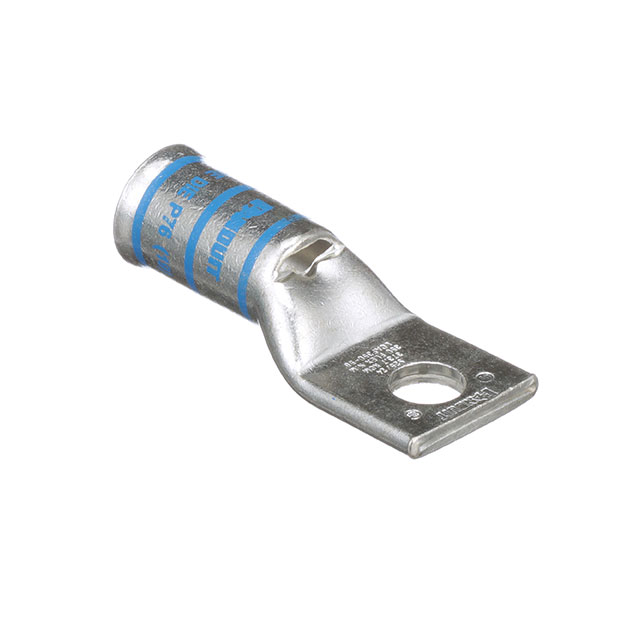

Panduit Corp Pan-Lug Series LCAF350-58-6 is a non-insulated, rectangular tongue terminal connector designed for 350 MCM (kcmil) wire. This crimp barrel terminal features a single stud hole with a 5/8 stud size and a tab thickness of 0.220 inches. Its overall length is 3.860 inches, and the outer edges measure 1.540 inches in width. The connector is supplied in bulk packaging and is blue in color. Its free-hanging (in-line) mounting type makes it suitable for applications in power distribution and electrical infrastructure where robust and reliable connections are critical.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 350MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/8 Stud |
| Length - Overall | 3.860"" (98.04mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.540"" (39.12mm) |
| Tab Thickness | 0.220"" (5.59mm) |
| Terminal Style | Single Stud Hole |
