LCAF350-38F-6
CONN TERM RECT TONG 350 MCM #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

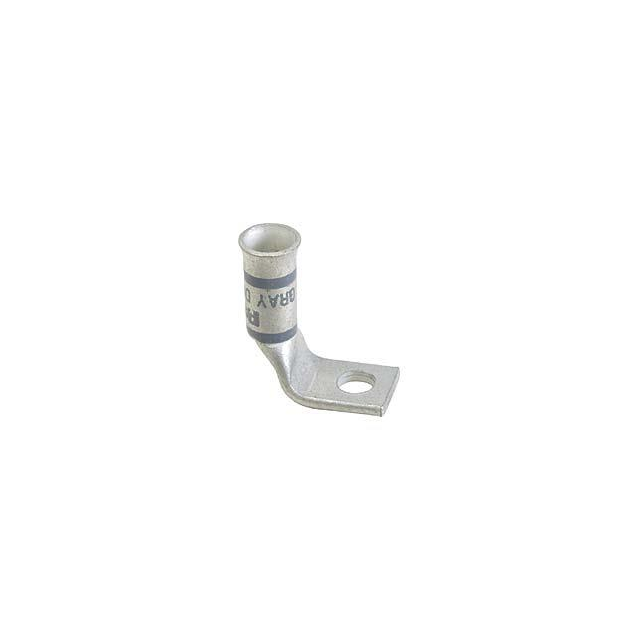

Panduit Corp's Pan-Lug™ LCAF350-38F-6 is a non-insulated, rectangular tongue terminal connector designed for 350 MCM (kcmil) wire. This component features a 3/8 stud size with a tab thickness of 0.220 inches and an outer width of 1.540 inches. The terminal style is a single stud hole with a barrel termination suitable for crimping. Mounting options include free hanging (in-line) and right angle configurations. This Panduit Corp Pan-Lug™ is commonly utilized in electrical power distribution and industrial control systems.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 350MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.540"" (39.12mm) |
| Tab Thickness | 0.220"" (5.59mm) |
| Terminal Style | Single Stud Hole |
