LCAF350-12H-6
CONN TERM RECT TONG 350 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

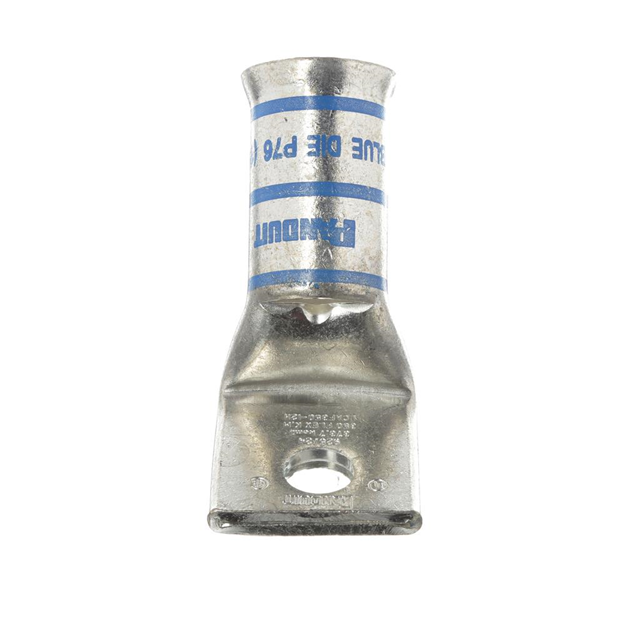

Panduit Corp Pan-Lug™ LCAF350-12H-6 is a non-insulated, rectangular tongue terminal connector designed for 350 MCM (kcmil) wire. This component features a 1/2 stud size and a single stud hole for termination. The terminal style is a rectangular tongue with a barrel for crimp termination. Key dimensions include an outer width of 1.540" (39.12mm) and a tab thickness of 0.220" (5.59mm). Mounting options include free hanging (in-line) or a 45° angle orientation. This Panduit Corp terminal is suitable for applications in the power distribution and renewable energy sectors, where robust and reliable electrical connections are critical. The bulk packaging facilitates efficient integration into high-volume manufacturing processes.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 350MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.540"" (39.12mm) |
| Tab Thickness | 0.220"" (5.59mm) |
| Terminal Style | Single Stud Hole |
