LCAF300-12H-6
CONN TERM RECT TONG 300 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

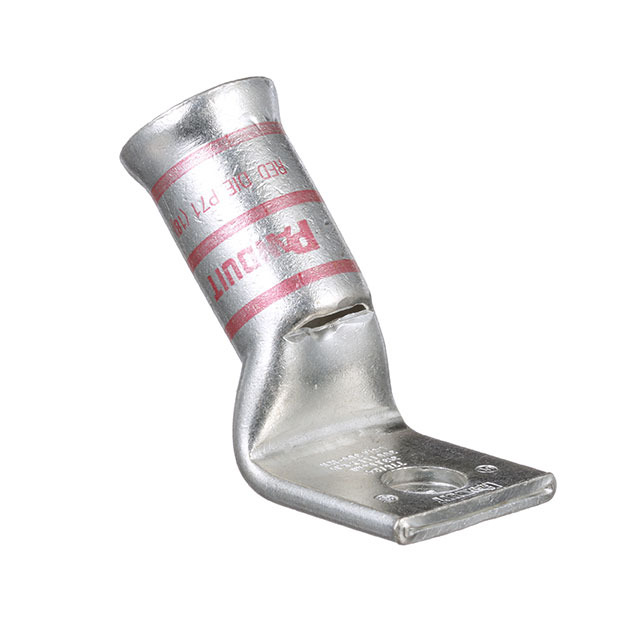

Panduit Corp Pan-Lug™ LCAF300-12H-6 is a non-insulated, rectangular tongue terminal connector designed for crimp barrel termination. This component accommodates a 300MCM (kcmil) wire gauge and features a 1/2 stud size with a tab thickness of 0.180 inches (4.57mm). The overall width across outer edges is 1.390 inches (35.31mm). Mounting is supported via a free hanging (in-line) configuration with a 45° angle option. This terminal is suitable for applications requiring robust electrical connections in industrial automation, power distribution, and heavy equipment manufacturing. The product is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Red |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 300MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.390"" (35.31mm) |
| Tab Thickness | 0.180"" (4.57mm) |
| Terminal Style | Single Stud Hole |
