LCAF3/0-56H-X
CONN TERM RECT TONG 3/0AWG #5/16Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

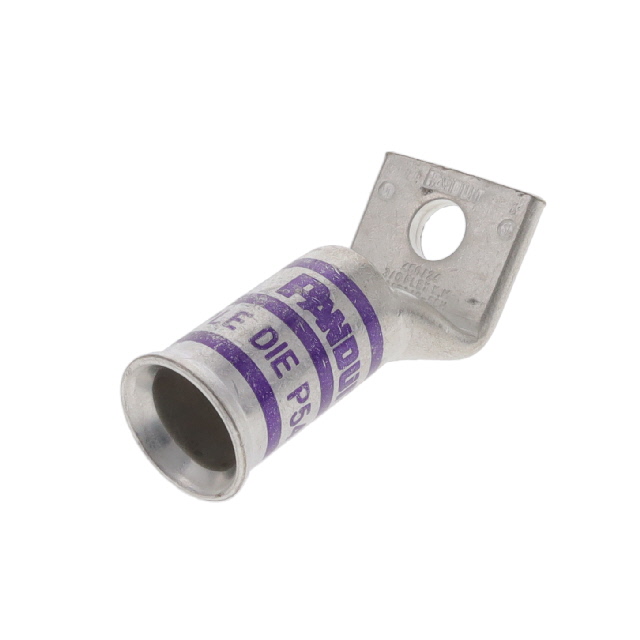

Panduit Corp's Pan-Lug™ LCAF3-0-56H-X is a non-insulated, rectangular tongue terminal connector designed for heavy-gauge wire applications. This component features a single stud hole compatible with a 5/16" stud size and supports a wire gauge of 3/0 AWG. The terminal style is a single stud hole with a rectangular tongue, offering a robust termination solution via crimp barrel. Key dimensional specifications include an outer edge width of 1.060" (26.92mm) and a tab thickness of 0.140" (3.56mm). The mounting type is versatile, supporting free hanging (in-line) and 45° angle configurations. This Panduit Corp terminal is commonly utilized in power distribution, industrial automation, and heavy equipment manufacturing, where reliable electrical connections are critical. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Purple |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 3/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.060"" (26.92mm) |
| Tab Thickness | 0.140"" (3.56mm) |
| Terminal Style | Single Stud Hole |
