LCAF3/0-56F-X
CONN TERM RECT TONG 3/0AWG #5/16Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

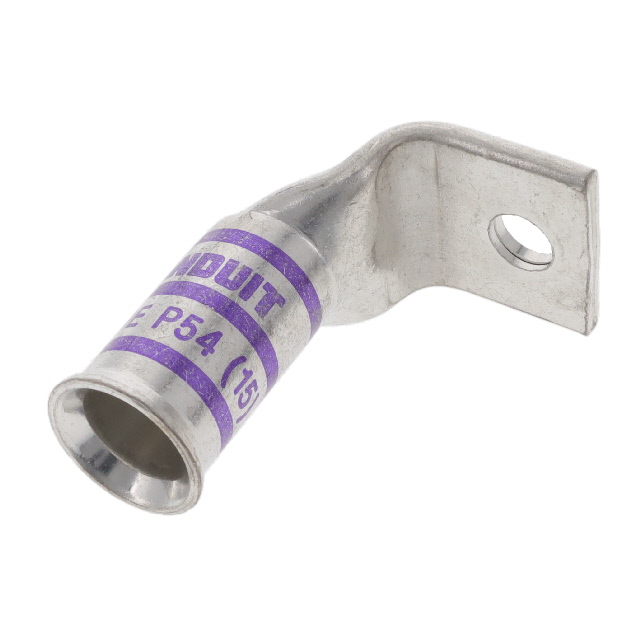

Panduit Corp Pan-Lug™ LCAF3-0-56F-X is a non-insulated, rectangular tongue terminal designed for robust electrical connections. This component accommodates 3/0 AWG wire gauge, featuring a 5/16 stud size for secure mounting. The terminal style is a single stud hole with a barrel termination, suitable for crimping. Key dimensions include an outer edge width of 1.060" (26.92mm) and a tab thickness of 0.140" (3.56mm). Mounting options include free hanging (in-line) and right angle configurations. This Panduit Corp lug is commonly utilized in power distribution, industrial automation, and renewable energy sectors where reliable termination of heavy gauge conductors is critical. Packaged in bulk, this component offers dependable performance for demanding applications.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Purple |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 3/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.060"" (26.92mm) |
| Tab Thickness | 0.140"" (3.56mm) |
| Terminal Style | Single Stud Hole |
