LCAF3/0-38F-X
CONN TERM RECT TONG 3/0 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

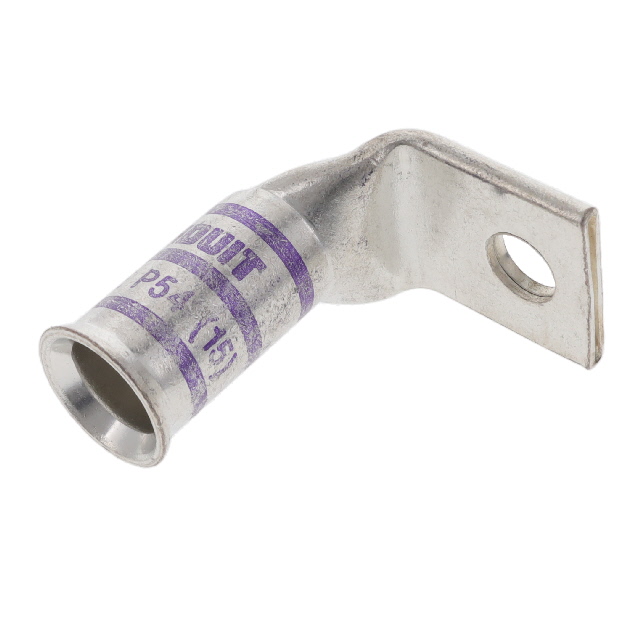

Panduit Corp Pan-Lug™ LCAF3-0-38F-X is a non-insulated, single stud hole rectangular tongue terminal designed for robust electrical connections. This component supports 3/0 AWG wire gauge and features a 3/8 stud size with a tab thickness of 0.140 inches. The terminal offers a 1.060-inch outer edge width and is suitable for crimp termination with a barrel. Its mounting type is free hanging (in-line) or right angle. The LCAF3-0-38F-X is utilized in industrial and power distribution applications where reliable, high-current connections are critical. This component is supplied in bulk packaging and is colored purple.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Purple |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 3/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.060"" (26.92mm) |
| Tab Thickness | 0.140"" (3.56mm) |
| Terminal Style | Single Stud Hole |
