LCAF250-58-X
CONN TERM RECT TONG 250 MCM #5/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

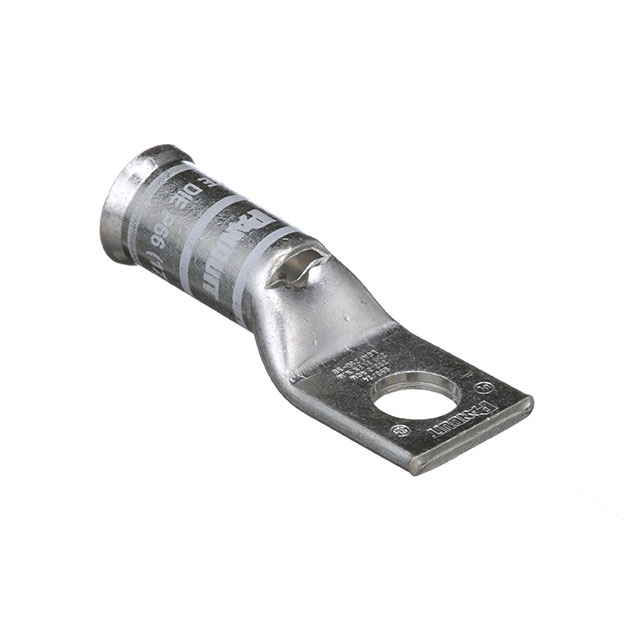

Panduit Corp Pan-Lug™ LCAF250-58-X is a non-insulated, rectangular tongue terminal connector designed for 250 MCM (kcmil) wire. This component features a single stud hole with a 5/8" diameter, a tab thickness of 0.170", and an overall length of 3.510". The terminal type is a rectangular tongue, suitable for crimp barrel termination. It is manufactured with a free-hanging, in-line mounting type. The outer edges measure 1.280" in width. This Panduit Corp Pan-Lug™ terminal is commonly utilized in power distribution and electrical infrastructure applications.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | White |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 250MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/8 Stud |
| Length - Overall | 3.510"" (89.15mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.280"" (32.51mm) |
| Tab Thickness | 0.170"" (4.32mm) |
| Terminal Style | Single Stud Hole |
