LCAF2-38H-E
CONN TERM RECT TONG 2 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

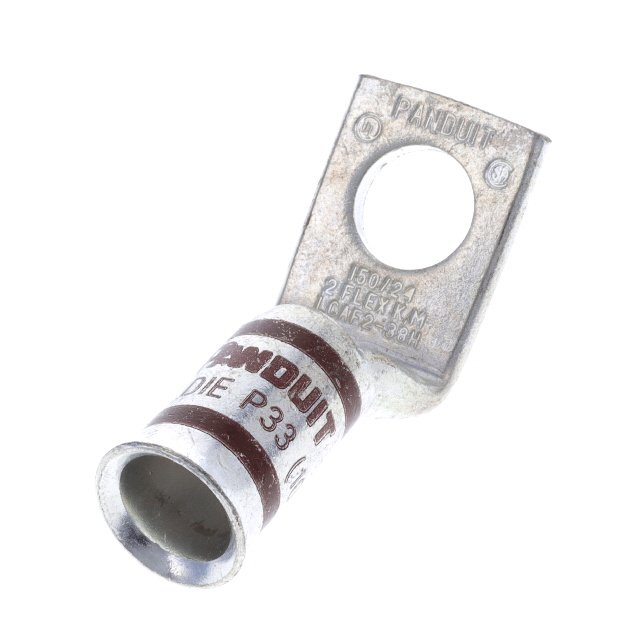

Panduit Corp Pan-Lug™ LCAF2-38H-E is a non-insulated, rectangular tongue terminal connector designed for 2 AWG wire. This component features a single stud hole with a 3/8 stud size and a tab thickness of 0.110 inches. The termination method is crimp via a barrel. Its outer edges measure 0.790 inches in width. The mounting type is free hanging, with an option for a 45° angle. This terminal is suitable for use in power distribution, industrial automation, and renewable energy applications.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 2 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.790"" (20.07mm) |
| Tab Thickness | 0.110"" (2.79mm) |
| Terminal Style | Single Stud Hole |
