LCAF2-38F-E
CONN TERM RECT TONG 2 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

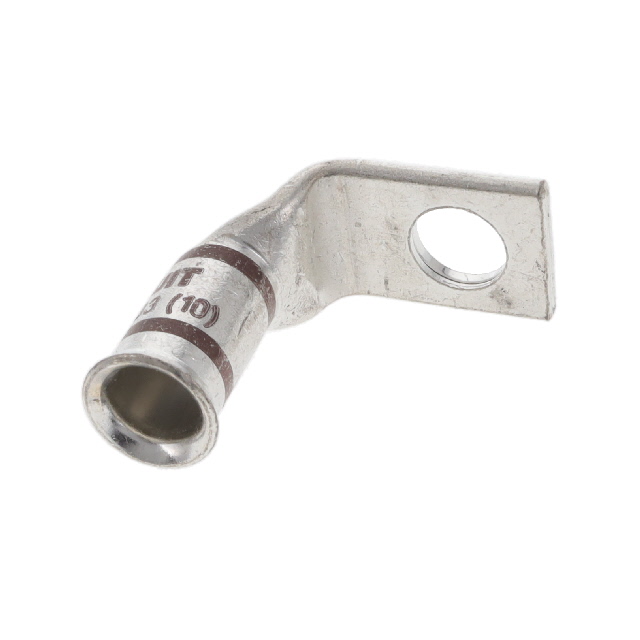

Panduit Corp Pan-Lug™ LCAF2-38F-E is a non-insulated, rectangular tongue terminal connector designed for 2 AWG wire. This component features a single stud hole with a 3/8" stud size and a tab thickness of 0.110" (2.79mm). The terminal is terminated via a barrel crimp. Its outer edge width is 0.790" (20.07mm). This connector is suitable for a range of industrial applications, including power distribution and electrical infrastructure. The Panduit Corp Pan-Lug™ series is known for its robust construction and reliable performance in demanding environments.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 2 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.790"" (20.07mm) |
| Tab Thickness | 0.110"" (2.79mm) |
| Terminal Style | Single Stud Hole |
