LCAF2-12H-E
CONN TERM RECT TONG 2 AWG #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

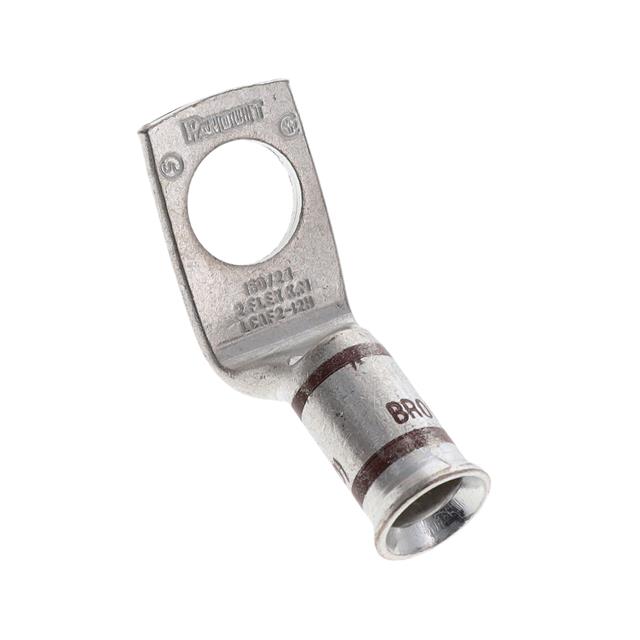

Panduit Corp Pan-Lug™ LCAF2-12H-E is a non-insulated, rectangular tongue terminal connector designed for 2 AWG wire. This component features a single 1/2 stud hole with a tab thickness of 0.090" (2.29mm) and an outer width of 0.790" (20.07mm). The LCAF2-12H-E is intended for crimp termination onto the wire barrel. Its mounting type supports free hanging (in-line) or a 45° angle orientation. This terminal is suitable for applications in power distribution and industrial automation where robust, reliable connections are critical. The brown color designation aids in identification within complex wiring systems. Packaged in bulk for high-volume requirements.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 2 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.790"" (20.07mm) |
| Tab Thickness | 0.090"" (2.29mm) |
| Terminal Style | Single Stud Hole |
