LCAF2-12F-E
CONN TERM RECT TONG 2 AWG #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

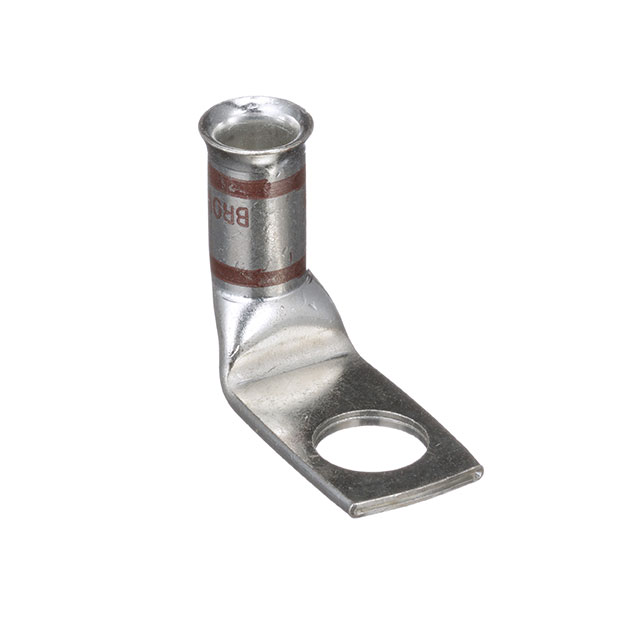

Panduit Corp Pan-Lug™ LCAF2-12F-E is a non-insulated, rectangular tongue terminal connector designed for 2 AWG wire. This component features a single stud hole with a 1/2 stud size and a tab thickness of 0.090 inches (2.29mm). The terminal style is a rectangular tongue with a barrel termination suitable for crimping. Its overall width is 0.790 inches (20.07mm). The LCAF2-12F-E offers both Free Hanging (In-Line) and Right Angle mounting types, providing flexibility in application. This component is commonly utilized in power distribution and electrical infrastructure across various industries. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 2 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.790"" (20.07mm) |
| Tab Thickness | 0.090"" (2.29mm) |
| Terminal Style | Single Stud Hole |
