LCAF2/0-38H-X
CONN TERM RECT TONG 2/0 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

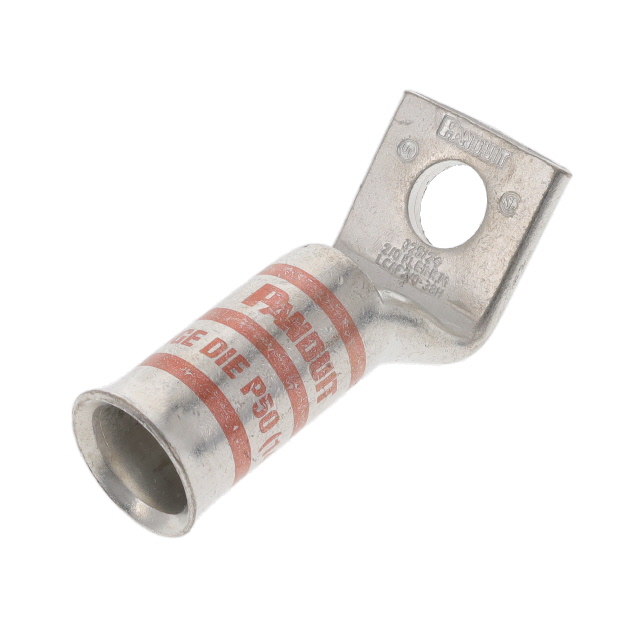

Panduit Corp Pan-Lug™ LCAF2-0-38H-X is a non-insulated, rectangular tongue terminal designed for 2/0 AWG wire. This crimp termination lug features a single stud hole with a 3/8" stud size and a tab thickness of 0.130". The overall width of the terminal is 0.960". Mounting is supported in a free hanging (in-line) configuration or at a 45° angle. This component is commonly utilized in power distribution and electrical infrastructure applications, including industrial control systems and heavy equipment manufacturing. Supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Orange |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 2/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.960"" (24.38mm) |
| Tab Thickness | 0.130"" (3.30mm) |
| Terminal Style | Single Stud Hole |
